Dual-use dish head and tank polishing/aluminum truck wheel polishing machine for sale

FOB Reference Price:Get Latest Price
$7,333.00 - $19,333.00 / Set | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Liaoning, China
Brand Name:
MC
Condition:
New
Power (kW):
8.5
Weight (KG):
2200
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Online support, Video technical support
Applicable Industries:
Retail, Advertising Company, Manufacturing Plant
Power supply::
380V/50HZ
Temperature::
-10-40℃
The gas source::
0.2-0.6Mpa 0.6m3/h
Processing noise::
<=75db
Relative::
<90%
Outside dimension(L*W*H)::
4800X1600X3080mm
Rated current;:
8.8A
Operating noise::
≤85db
dish Head processing range:
diameter 400mm-5000mm
Protection level::
IP55
Supply Ability
Supply Ability:
10 Set/Sets per Year
Packaging & Delivery
Packaging Details
Standard export packing,woodbox loaded,airframe coverd with one layer transparent plastic film
Port
Dalian
Video Description

Dual-use dish head and tank polishing/aluminum truck wheel polishing machine for sale

Product Description

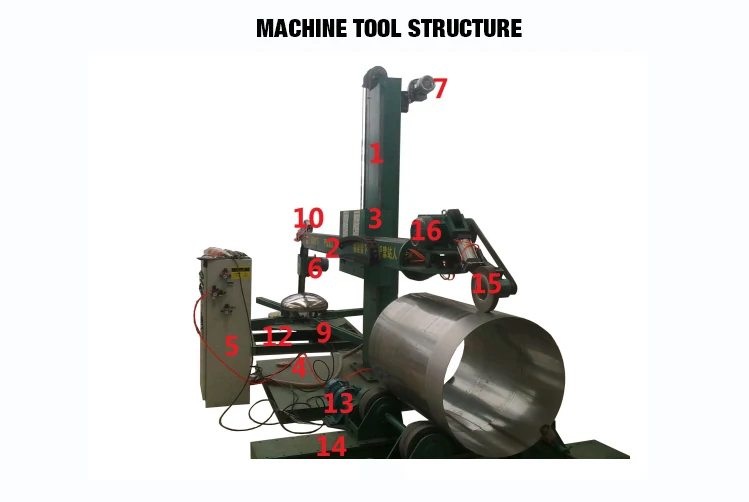

Machine tool structure

      1.Including the mechanical part, electrical control part

        (1.1) The mechanical part is composed of polishing system, polishing wheel walking system, workpiece reversing table, and the main workpiece is welded structural part

        (1.2)The electrical control part consists of control cabinet, frequency converter and motor.

1. The column

2. The beam

3. Walking bracket

4. Column base

5.Power distribution cabinet

6. Head main motor

7. Lifting motor

8. Walking motor

9.Rotary head motor

10. Sealing cylinder

11. Head grinding wheel

12. Head rotary base

13. Tank body rotary motor

14.Tank body rotary base

15. Tank wheel

16.Main motor of tank body



Product Description

1. Grinding with abrasive belt, high efficiency, low noise and less dust. Using thousands of impeller (or wheel dipped emery cloth, wool wheel) polishing, mirror polishing can be achieved.

2. Integrated belt polishing machine, which can respectively polish different parts such as tank body and head, grinding, and select the abrasive belt grinding head with processing precision Ra≤0.2μm (mirror effect). Both workpiece rotation and lateral feed are variable frequency stepless speed regulation, which further improves work efficiency.

3. One device can polish the inner and outer surfaces of the tank and the head, equipped with two sets of grinding heads and two sets of workpiece turning mechanisms.

  Want to see this tank & dish polishing machine more information!                  More>>



Want to know this tank & dish polishing machine more information!           Contact us>>

 dis

Specification of grinding and polishing machine

Outer Dimension

4700*1600*3100 mm

Machine Weight

2000 KG

Input Power

8 KW

Control System

PLC/CNC

Polishing Materials

Abrasive belt,Flap wheel,Nylon,Hemp wheel,Cloth wheel

Note

Our products all Non-Standard Customization

he

Specifications of Working Pieces

Work Piece Size

Tank/Vessel/Cylinder

Diameter

400-5000 mm

Max Length

6000 mm

Max Weight

10 T

Dished End/Tank Top

Diameter

400-5000 mm

Depth

2500 mm

Max Weight

10 T

Material

stainless steel,aluminium alloy,carbon steel,red copper,etc.

Surface Roughness

Ra ≤ 0.4 μm (Mirror Finished)

Product Eifficiency

6 - 12 square meters per hour

d end forming machine
Application Industry

      Mainly application for leisure food factory equipment, winery equipment, fruit and vegetable processing plant equipment, frozen food factory equipment, seasoning processing equipment, meat processing plant equipment head curling machine, flat bottom crimping machine, conical spiral machine, Edge turning machine, cylinder body crimping machine, beer tank curling machine, oil tank head crimping machine, etc.

Tank relate machine

   Company specializing in tank making machinery equipments,such as dish end machine,triming cutting machine,Necking machine, Longitudinal seam welding machine,Circular Seamwelding machine,cutting machine,bending machine,rolling machine etc.

Want to know other machines related to this tank welding machines!         More>>

Company Information

     Our company with good reputation and credit. We can provide you not only good quality tank polishing machine but also good after-sale service.

Want to understand the company's scale and strength!                                                 Go>>



 Buy this tank & dish polishing machines!                                                          Contact us>>

Packaging & Shipping

 Standard export packing,woodbox loaded,airframe coverd with one layer transparent plastic film.



contact us

FAQ

1.Does your company accept customized offer, we have special need.

  MC is a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.



2.What certificate the machine in your company get?

We’ve passed the ISO9001 Quality System Approval and CE Certification.



3.Do you have price list for optional configuration?

  We have various configurations and so many different specifications, so we can’t offer you price list. Please contact our sales engineer if you’re interested in certain specific configuration.



4.Does your company accept CIF price?

  CIF price includes shipping cost of cnc machine which needs to quote according to the different destination port and various in different months. Please contact us when you have such need.
CIF price also includes marine premium which is 2‰ of 1.1*total amount.



5.If your engineer come to our country to fix the machine and do some training, how much will it cost?

  The cost mainly contain the cost of round-trip flight tickets, board and lodging as well as v isa fee. Staff cost is 100USD/day/person, normally, it’s a two person job. But it will depends for a large equipment or installation and debugging of the whole line.



6.What’s the warranty?

Warranty is 12 months which begins from the day when the machine has arrived at the importer’s port.



7.What’s your methods of transportation?

  For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation. Exported cnc machine is all be packed by wooden case which can be fixed into a 40 HQ.



8.If the machine is out-of-warranty, how to charge the cost of accessories?

  For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.



9.What I would do for the machine failure?

  If the machine malfunction and users are unable to resolve, please email us for consultation. Our service department will respond within 24 hours.



10.How to define the machine warranty? When did you start timing?

  We identify the warranty based on the factory number. Warranty timing counted starting after equipment commissioning and acceptance. If you have any questions, please email us for consultation.



11.How long is the warranty period of machine tool?

  We commitment to client machines are one-year warranty. For the purchase of the user, registered as a member in this website, with the factory number of the machine, you can enjoy extended warranty of 3 months. For details, please refer to membership service.



12.Does MC have maintenance manual and operation manual?

  Each cnc machine leaving the factory will be along with related series or model the English instructions including maintenance manual and operation manual. Attached documentations may also include cnc controller instruction, parts instruction you bought(like rotaty table, oil cooler)
